Lecture #2



Web and user interface design



slides.com/jkohlin/web2/live

leftovers…

https://ju.slides.com/jkohlin/web1#/38

Tools

Text editors Browsers Image editor
VS Code Chrome Photoshop
Atom / Bracket Firefox Affinity Photo
Sublime Text
Dreamweaver

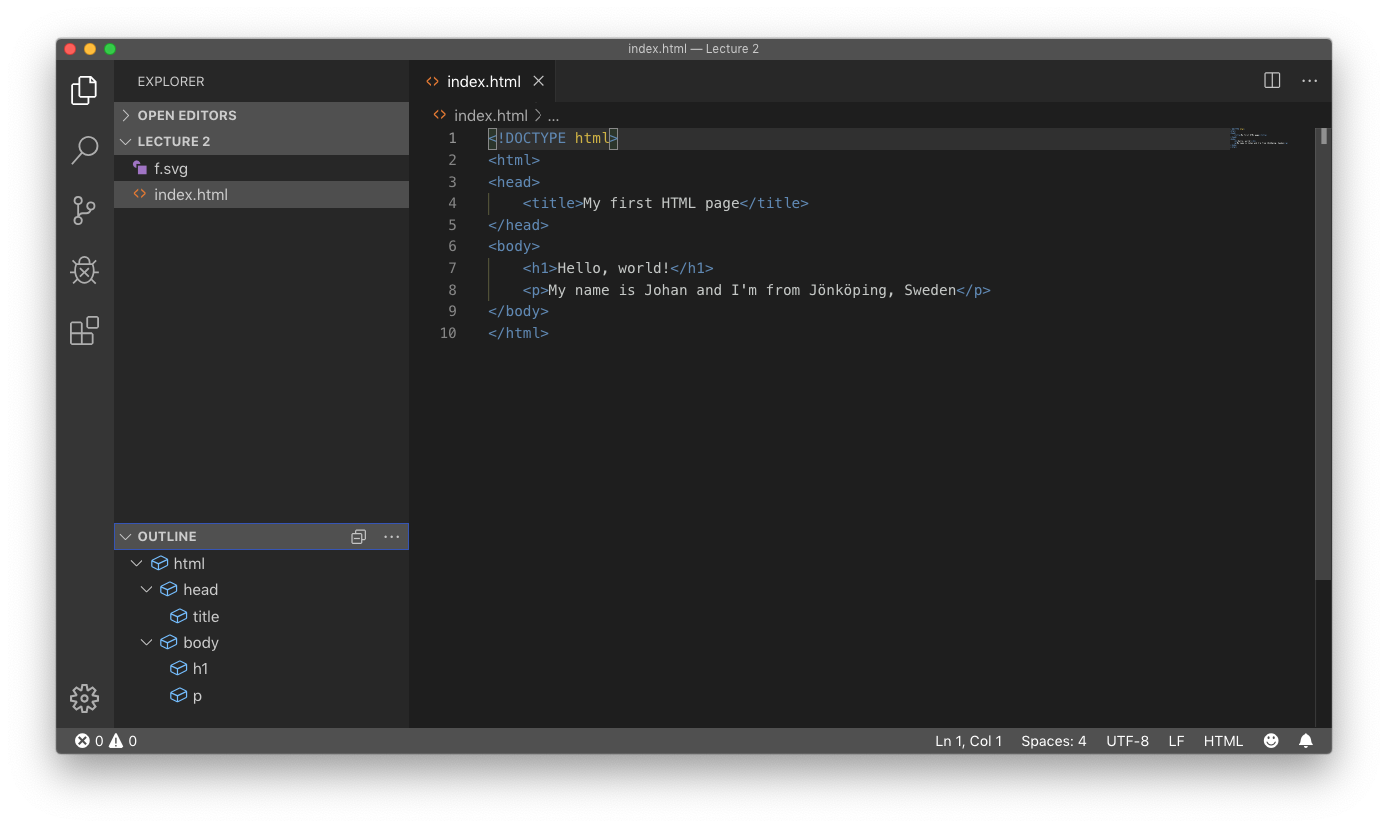

Learn Visual Studio Code

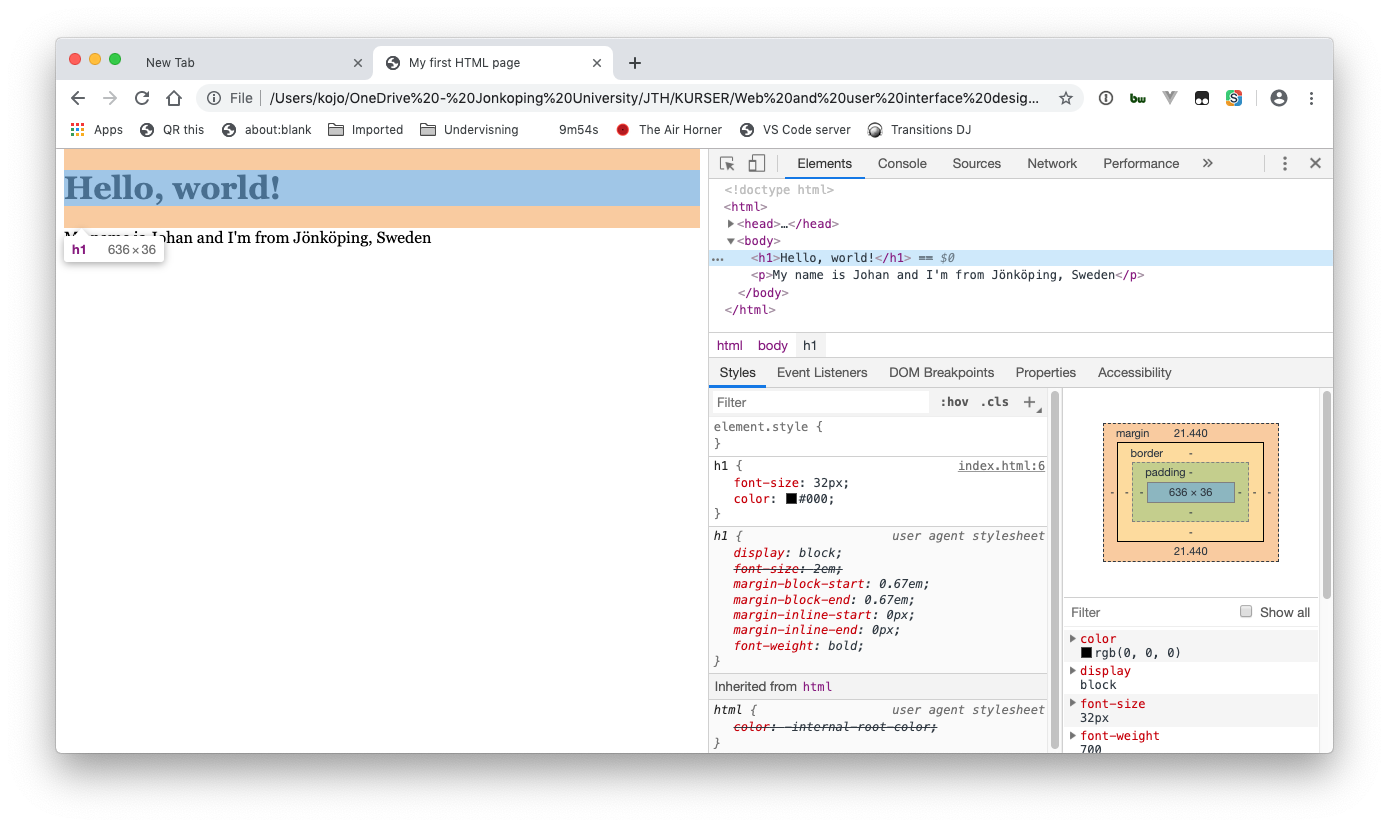

Learn the developer tools

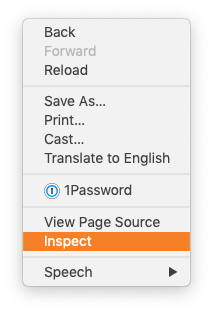

  1. right click en element
  2. select Inspect


   +   + i

HT

HyperText

ML

Markup Language

Markup

Learning markup



By placing tags around textual content we can    mark it up     .

We are tagging different parts of the content with words to describe it.

start heading

stop heading

paragraph

/paragraph

italic

/italic

paragraph

/paragraph

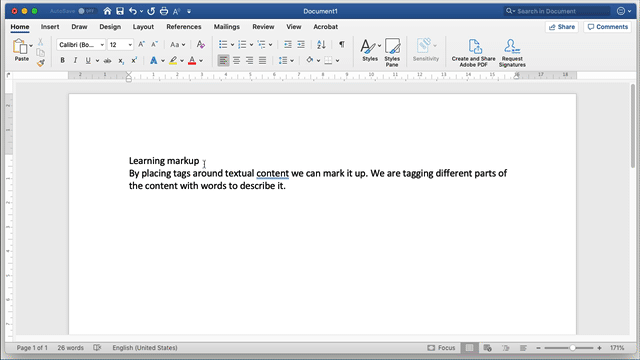

Marking up in Word

Marking up in Word

  <w:body>
    <wx:sect>
      <wx:sub-section>
        <w:p wsp:rsidR="00D546ED" wsp:rsidRPr="00D546ED" wsp:rsidRDefault="00D546ED" wsp:rsidP="00D546ED">
          <w:pPr>
            <w:pStyle w:val="Heading1" />
            <w:rPr>
              <w:lang w:val="EN-US" />
            </w:rPr>
          </w:pPr>
          <w:r wsp:rsidRPr="00D546ED">
            <w:rPr>
              <w:lang w:val="EN-US" />
            </w:rPr>
            <w:t>Learning markup</w:t>
          </w:r>
        </w:p>
        <w:p wsp:rsidR="00D546ED" wsp:rsidRPr="00397692" wsp:rsidRDefault="00D546ED" wsp:rsidP="00694BCE">
          <w:pPr>
            <w:pStyle w:val="ListParagraph" />
          </w:pPr>
          <w:r wsp:rsidRPr="00397692">
            <w:t>By placing tags around textual content, we can mark it up.</w:t>
          </w:r>
        </w:p>
        <w:p wsp:rsidR="00D546ED" wsp:rsidRPr="00397692" wsp:rsidRDefault="00D546ED" wsp:rsidP="00694BCE">
          <w:pPr>
            <w:pStyle w:val="ListParagraph" />
          </w:pPr>
          <w:r wsp:rsidRPr="00397692">
            <w:t>We are tagging different parts of the content with tags to describe it.</w:t>
          </w:r>
        </w:p>
      </wx:sub-section>
      <w:sectPr wsp:rsidR="00D546ED" wsp:rsidRPr="00397692">
        <w:pgSz w:w="12240" w:h="15840" />
        <w:pgMar w:top="1440" w:right="1440" w:bottom="1440" w:left="1440" w:header="708" w:footer="708" w:gutter="0" />
        <w:cols w:space="708" />
        <w:docGrid w:line-pitch="360" />
      </w:sectPr>
    </wx:sect>
  </w:body>
</w:wordDocument>

Markup

<heading>Learning markup</heading>

<paragraph>By placing tags around textual content we can <italic>mark it up</italic>.</paragraph>

<paragraph>We are tagging different parts of the content with words to describe it.</paragraph>

(not actual HTML tags)

HT Markup L

<h1>Learning markup</h1>

<p>By placing tags around textual content we can <i>mark it up</i>.</p>

<p>We are tagging different parts of the content with words to describe it.</p>

(actual HTML tags)

Learning markup

By placing tags around textual content we can mark it up.

We are tagging different parts of the content with words to describe it.

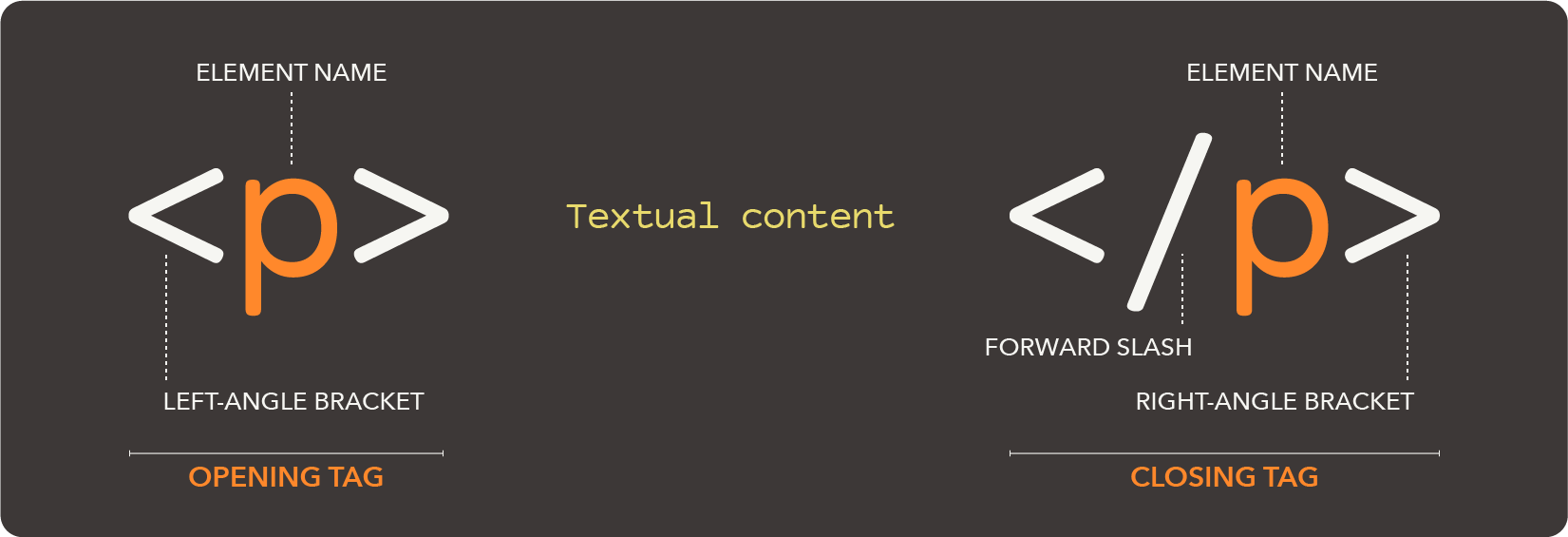

The anatomy of an element

exemplified by the paragraph element

This tag is used to mark up a paragraph of text. Whenever you add a new Paragraph element, the text inside will start on a new row in the browser with some default margin between each paragraph.

Basic document structure

Learn this by heart

<!DOCTYPE html>
<html>
  <head>
      <meta charset="UTF-8">
      <title>Page title</title>
  </head>
  <body>

  </body>
</html>

Basic document structure

Learn it by heart

<!DOCTYPE html>

Tells the browser what language the document is. (this is not an HTML tag)

Basic document structure

Learn it by heart

<!DOCTYPE html>
<html>




</html>

The root HTML element.

The only allowed child elements are head and body

Basic document structure

Learn it by heart

<!DOCTYPE html>
<html>
<head>


</head>



</html>

This is like the documents settings or preferences. Meta information and linked documents go here.

Basic document structure

Learn it by heart

<!DOCTYPE html>
<html>
<head>
    <meta charset="UTF-8">
    <title>Page title</title>
</head>



</html>

information of what character set the document is written in.

This text will be on the browser tab and the clickable link in a google search result. Should describe the page well.

Basic document structure

Learn it by heart

<!DOCTYPE html>
<html>
<head>
    <meta charset="UTF-8">
    <title>Page title</title>
</head>
<body>

</body>
</html>

inside the body tag is where all the visible content go.

Basic document structure

example with text

<!DOCTYPE html>
<html>
<head>
  <meta charset="UTF-8">
  <title>Page title</title>
</head>
<body>
  <h1>Learning markup</h1>
  <p>By placing tags … <i>mark it up</i>.</p>
  <p>We are tagging different parts of…</p>
</body>
</html>

Semantic elements

semantic containers

non-semantic container

Some semantic elements

...that explain it's content

<h1></h1> 	<!-- Heading level 1 -->
<h2></h2> 	<!-- Heading level 2 -->
<p></p>		<!-- Text Paragraph  -->
<ul></ul>	<!-- unordered list  -->
<li></li>	<!-- List item  -->

comments

<!-- Comments -->

<!doctype>
<!--
An HTML comment will hide textual content from the browser.
Once it's opened it will continue to hide all text until it it closed,
which can span multiple lines
-->
<html>
  <head>
    <title><!-- add your document title here --></title>
  </head>
  <body>
    <h1>
      Hello, World!
    </h1>
  </body>
</html>

A curious case of

bold and italic

<em></em>
<!-- Emphasis; puts stress on a word. Default style is italic -->

<strong></strong>
<!-- Suggests importance, seriousness, or urgency. Default style is bold -->

<i></i>
<!-- Italic. A span of text in an alternate voice or mood -->

<b></b>
<!-- Bold. A span of text to which attention is being drawn-->

semantic elements

for page structure

<header>
    <nav></nav>
</header>
<main>
    <article></article>
    <article></article>
</main>
<aside></aside>
<footer></footer>

Organizing page content: Page 80-86

non-semantic elements

usually only used for layout purposes

<span></span>		<!-- Generic inline container -->
<div></div>		<!-- Generic block level container -->
<br>			<!-- Line break -->
<div>
  <div></div>
</div>
<div>
  <div></div>
  <div></div>
</div>
<div></div>
<div></div>

<div>s don't say much about the

content or the structure

Another grouping of elements:

(other than semantic vs non semantic)

Block level elements

inline

elements

  • mark words in a flow of text
  • lines up next to each other
  • "shrink wraps" to its content

BLOCK

INLINE

SEMANTIC

NON SEMANTIC

<h1>
<footer>
<p>
<em>
<strong>
<span>
<div>
<ul>
<li>
<q>
<article>
<b>
<i>
<a>
<a>
<abbr>
<hr>

Attributes

properties that describe the element

SPACE

  • attributes ALWAYS go in the opening tag
  • multiple attributes are separated with a space

The global attributes

suits any element

  • lang
  • spellcheck
  • style
  • tabindex
  • title
  • translate

All element attributes

  • class
  • id
  • contenteditable
  • dir
  • draggable
  • hidden

Exercise

Create a real life element and give it suitable attributes

<car engine="V8" color="red">

Required attributes

<!--
  The anchor element is required to have an href attribute.
  Without it, the browser wouldn't know where to go, on click
-->
<a href="https://ju.se">Visit Jönköping university</a>

<!--
  The image element is required to have two attributes
  src="" tells where the source image file is
  alt="" describes the image to google, and blind people
-->
<img src="images/flowers.jpg" alt="a field of tulips"

Empty elements

The following elements don't have a closing tag

<meta charset="UTF-8">
<link href="style.css" rel="stylesheet">
<img src="photo.jpg" alt="">
<br>
<hr>

Usually, the attributes cary the information

a.k.a. void elements

Clickable Links

<a href="https://ju.se">Jönköping university</a>
<a href="about.html">About us</a>

Absolute URL

Relative URL

<a href="#article2">Article 2</a>

Document fragment

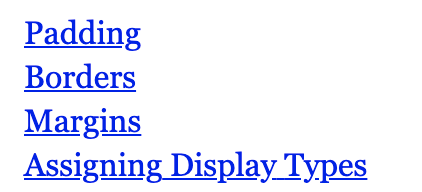

Document fragment links

linking to a position in the document

<nav>
  <ul>
    <li><a href="#article1">Article 1</a></li>
    <li><a href="#article2">Article 2</a></li>
    <li><a href="#article3">Article 3</a></li>
    <li><a href="#article4">Article 4</a></li>
    <li><a href="#article5">Article 5</a></li>
  </ul>
</nav>
<main>
  <article id="article1">Lorem ipsum...</article>
  <article id="article2">Dolor sit...</article>
  <article id="article3">Amet...</article>
</main>

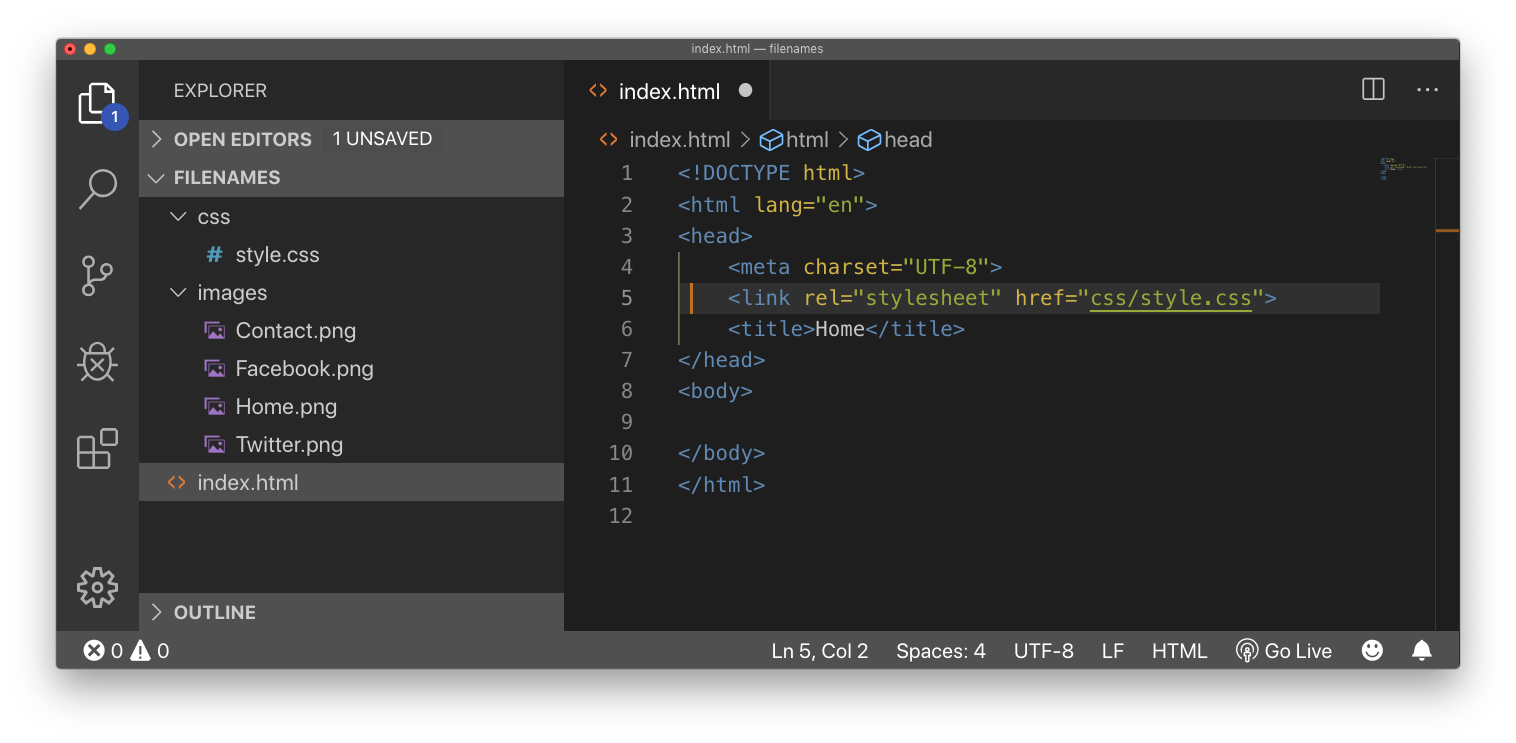

Relative links - file paths

When linking within the own site

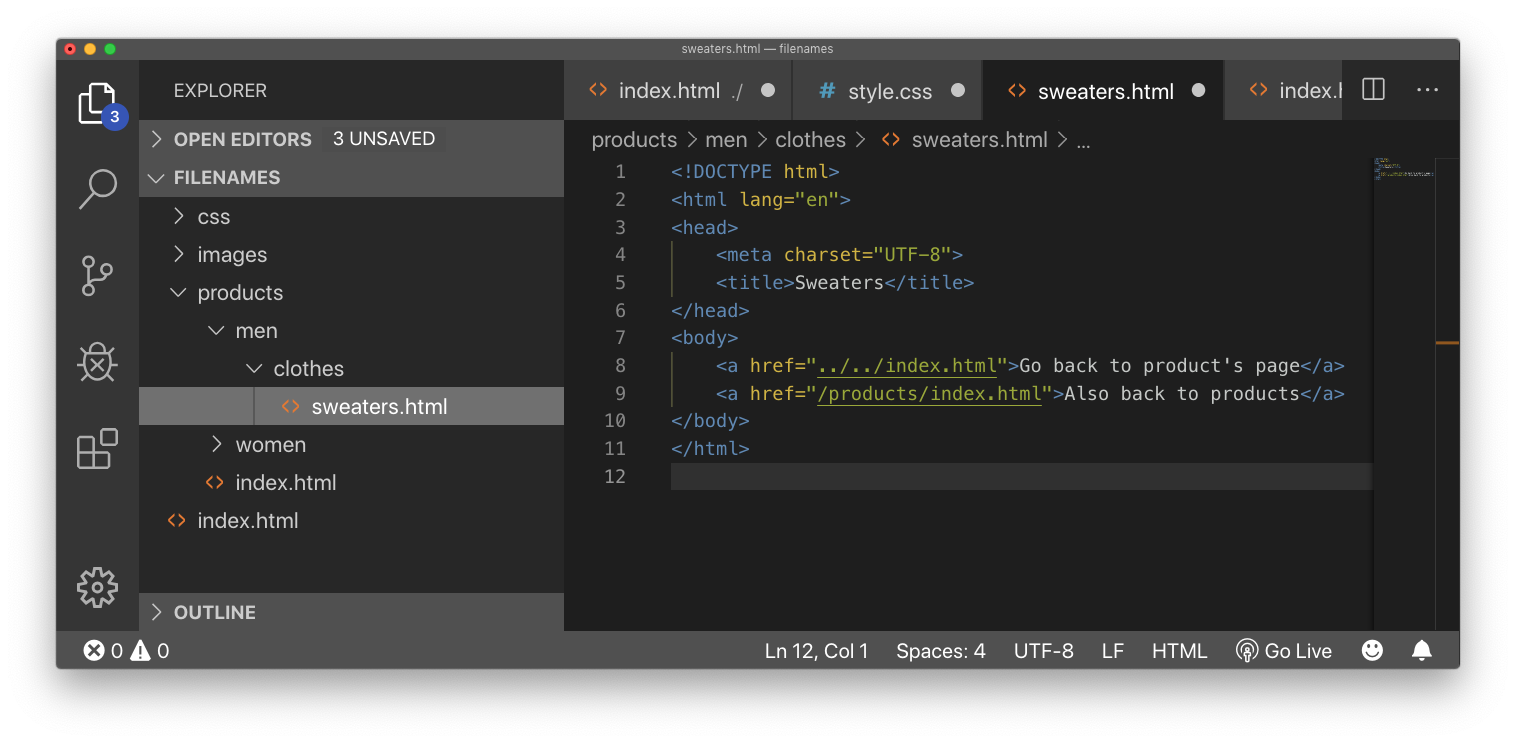

Relative links

Up and down folders

Up and down folders



<img src="picture.jpg"> picture.jpg is in the same folder as the current page
<img src="images/picture.jpg"> picture.jpg is in the images folder in the current folder
<img src="/images/picture.jpg"> picture.jpg is in the images folder at the root of the current web
<img src="../picture.jpg"> picture.jpg is in the folder one level up from the current folder
<img src="../../images/picture.jpg"> picture.jpg is in the images folder two levels up from the current folder

Open links in a new tab

target="_blank"

<a href="#article5" target="_blank">Article 5</a>
<a href="page5.html" target="_blank">Article 5</a>
<a href="http://a5.se" target="_blank">Article 5</a>

File- & folder names

Bad naming description
my picture.jpg no spaces
ölpiñata.html no extended characters
?haxxor'*file.txt no special characters
UpAnDown.GIF avoid uppercase, just in case

this_is/an-okay-filename2.html

Nesting elements

<house>
  <kitchen>
    <stove>stew</stove>
    <fridge>milk</fridge>
  </kitchen>
</house>

(not actual HTML tags)

Another nesting metaphor

<grandmother>
  <mother>
    <daughter></daughter>
  </mother>
</grandmother>

Nesting pitfall

<house>
  <kitchen>
    <stove> stew <fridge> milk </stove> </fridge>
  </kitchen>
</house>

If you mess up the nesting

or forget a closing tag,

your page will not behave as you expect.

Validate your document

if it behaves unexpectedly

W3C: validator.w3.org

whatwg: html5.validator.nu

Reference

All HTML elements

All HTML attributes

Till next time

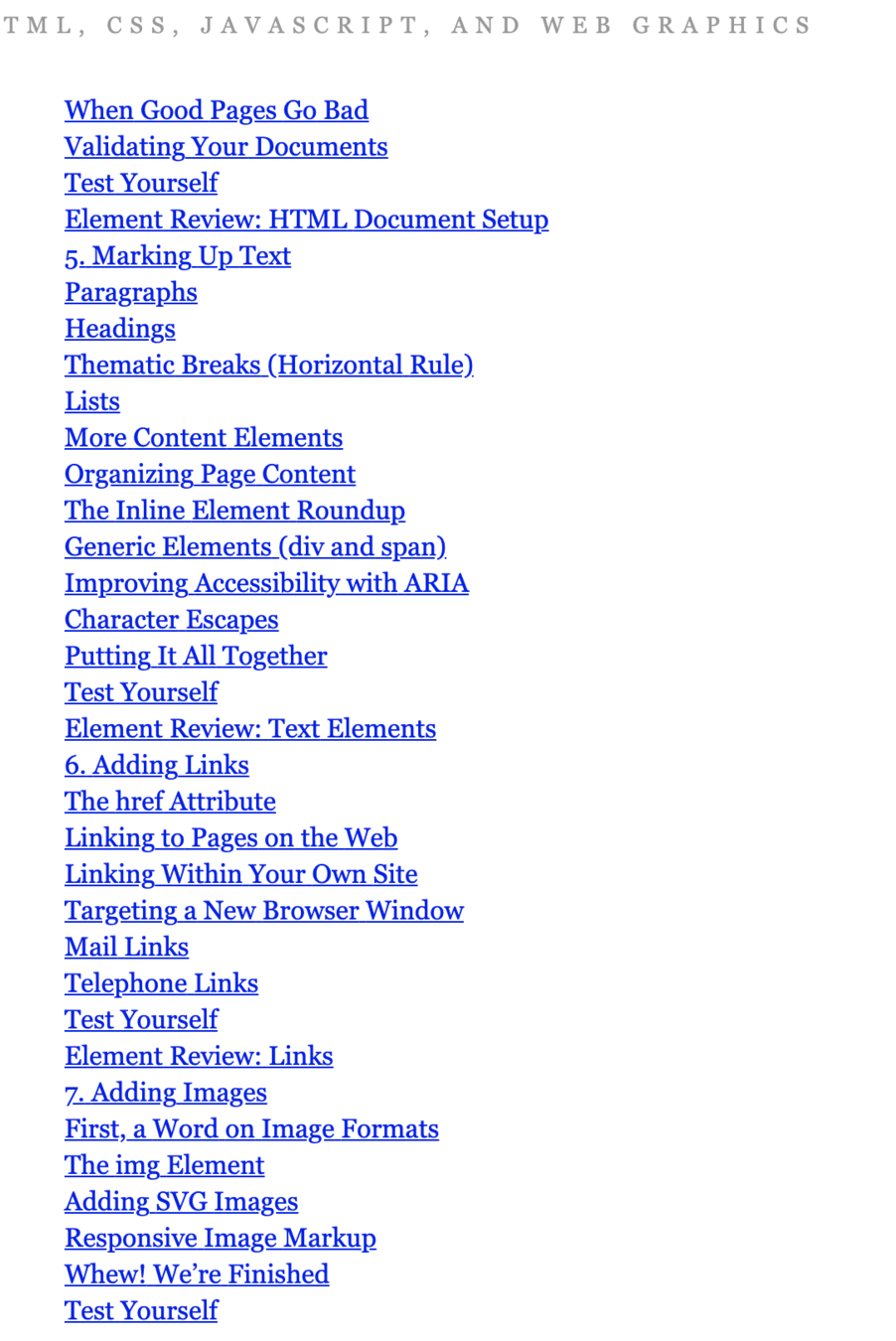

Repeat  in depth: chapter 4-6

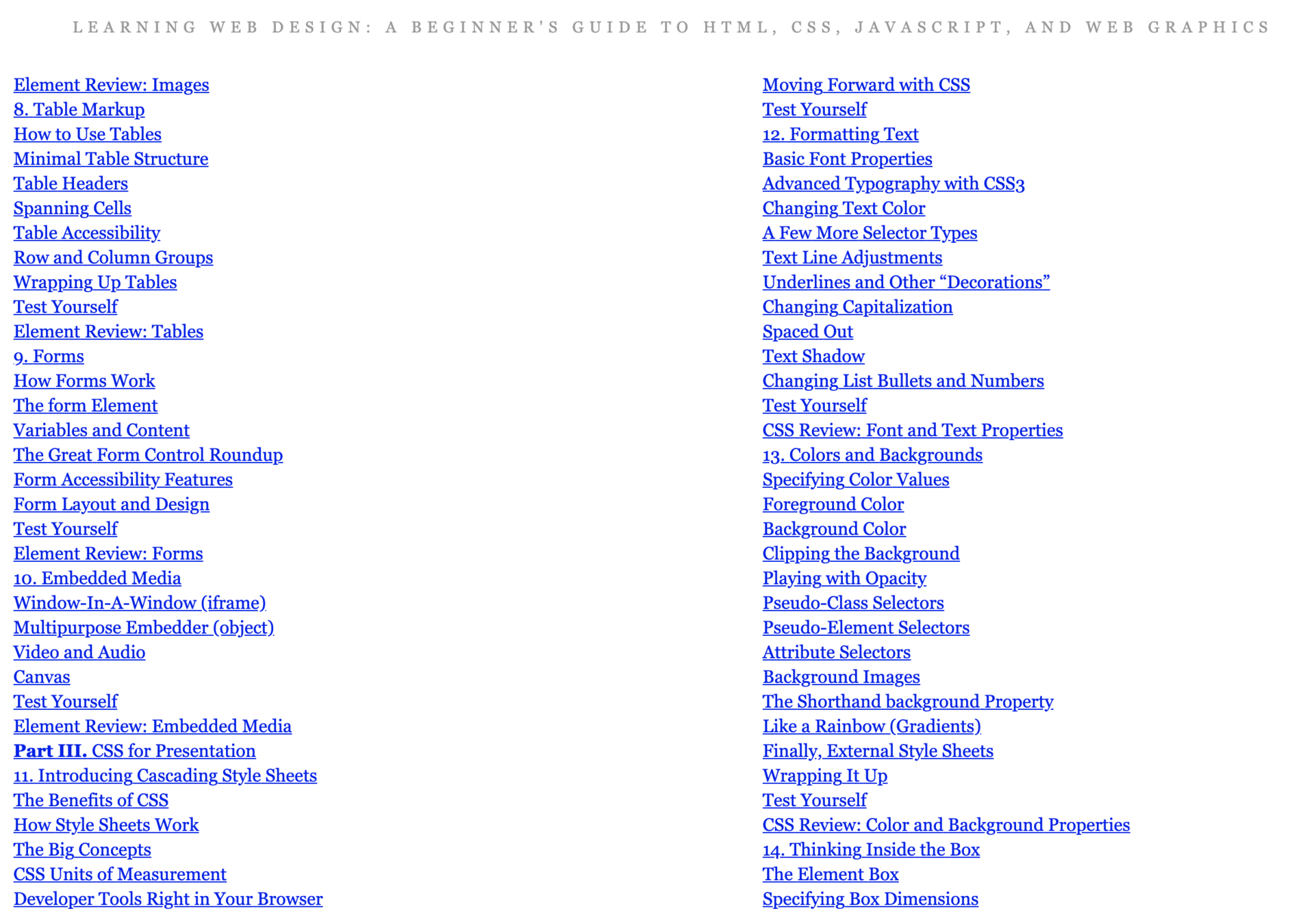

Prepare for next week: chapter 7,12,13,14
